DRONE HUNTER XD

The Drone Hunter XD is a portable drone detector that can rapidly detect drones and offer responses within a 360-degree radius of more than 1km.

Home » PRODUCTS & SOLUTIONS » C-UAS solutions » DETECTION » HAND-HELD TYPE » DRONE HUNTER XD
C-UAS solutions
C-IED solutions

Portable

DRONE HUNTER XD

DRONE HUNTER XD

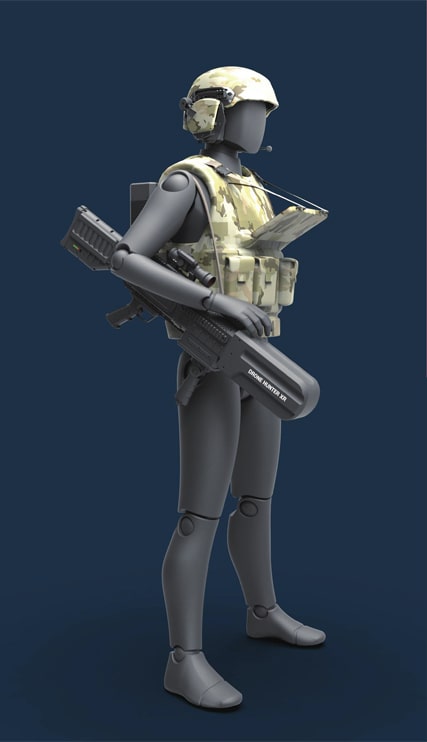

Drone Hunter XD is a handheld anti-drone solution that can quickly detect, identify, and track drones, providing swift onsite responses to drone threats within a 360-degree range of over 1 km.

Drone Hunter XD effectively neutralizes the frequencies of either a single drone or multiple drones approaching the blind spots of a fixed-type jammer, due to its receiving real-time access to information on detected DJI Drones, including S/N, model number, frequency band, azimuth/altitude angle, speed, and location.

FAB

– Multi purpose RF spectrum drone decoder for quick response under multiple application
– Adopts the technology of cognitive protocol cracking and message protocol level analysis to detect, identify, locate and trace the drones
– It can be easily to be carried by one person on backpack, mounting on the vehicle or fixed on buildings as well as portable deployment on the field
– Fully passive solution without causing any interference to wireless communication systems
– Works with multiple or single RF Scanner to provide a comprehensive coverage of geolocating drones
– Customizable localize operating software with updatable GIS maps and setting of the designated areas
– Display drone trace, location, log report and so on with historic record, easy for signals replay and analysis in future
– Support integration with 3rd party countermeasures equipment and other detection requirement

DRONE HUNTER XD

DRONE HUNTER XD

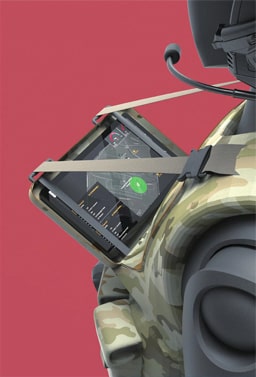

USER INTERFACE

DRONE HUNTER XD User interface

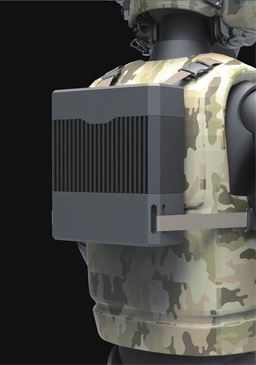

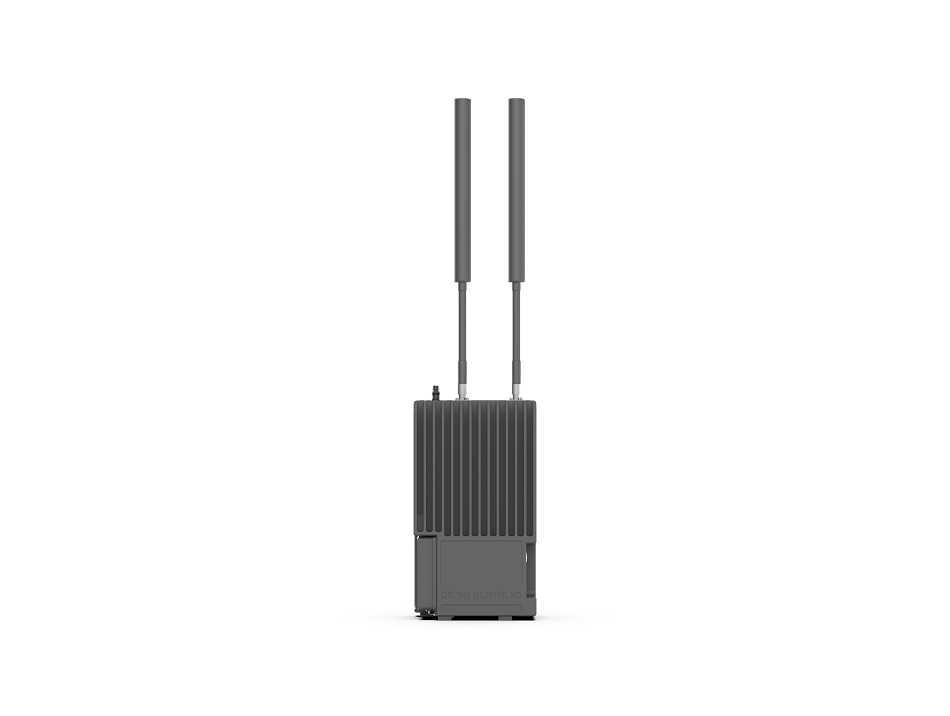

DETECTOR

DRONE HUNTER XD Detector

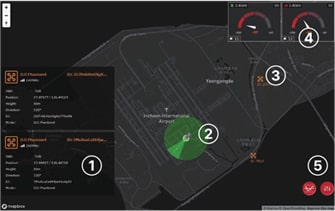

USER INTERFACE

DRONE HUNTER XD User interface
① Drone / Controller
Detection Information
② User Location and Facing
③ Location of Drone /
Controller on map
④ Signal Strength of Detected
Frequency Band
⑤ Configuration

Specifications

Parameter

Value

Frequency Band

2.4GHz, 5.8GHz (Optional : 860 ~ 930MHz, 420 ~ 470MHz)

Detection Time

< 3s

Quantity to detect the drone simultaneously

30 Units

Detection Range

1 km or better

Detection Angle

360°

Location Accuracy

Within 3m

Weight (Detector)

5.5kg

Jamming Range

1 km or better

All the data and appearance of the product are subject to change upon RF environments and customer’s request

TYPE

– Native Protocol Decoding Capability (Detect and identify the serial number, model number, frequency band, azimuth, speed, altitude, and location) : DJI Protocol Decoding
– Drone Detection Capability (Presence Only) : Library based, including Autel, Parrot, Skydio, PowerVision, HUBSAN, FIMI, 433MHz and 915MHz Telemetry *Drone library will be constantly updated *Depending on antenna configuration

Application area

  • national critical infrastructure
  • multi-use facilities
  • VIP protection
national critical infrastructure

national critical infrastructure

Protect national critical infrastructure, including energy and key industrial infrastructure, also border areas requiring security and protection, such as military bases, prisons, etc

multi-use facilities

multi-use facilities

Protect multi-use facilities exposed to threats such as airport and stadiums to prevent human casualties

VIP protection

VIP protection

Protect vehicles and embassy facilities as a means of protecting VIPs
