DRONE HUNTER FO

Drone Hunter FO is a counter drone solution that effectively neutralizes a single drone or multiple drones approaching in all directions from a distance of 2km.

Home » PRODUCTS & SOLUTIONS » C-UAS solutions » NEUTRALIZATION » FIXED TYPE » DRONE HUNTER FO
C-UAS solutions
C-IED solutions

Fixed type

DRONE HUNTER FO

DRONE HUNTER FO

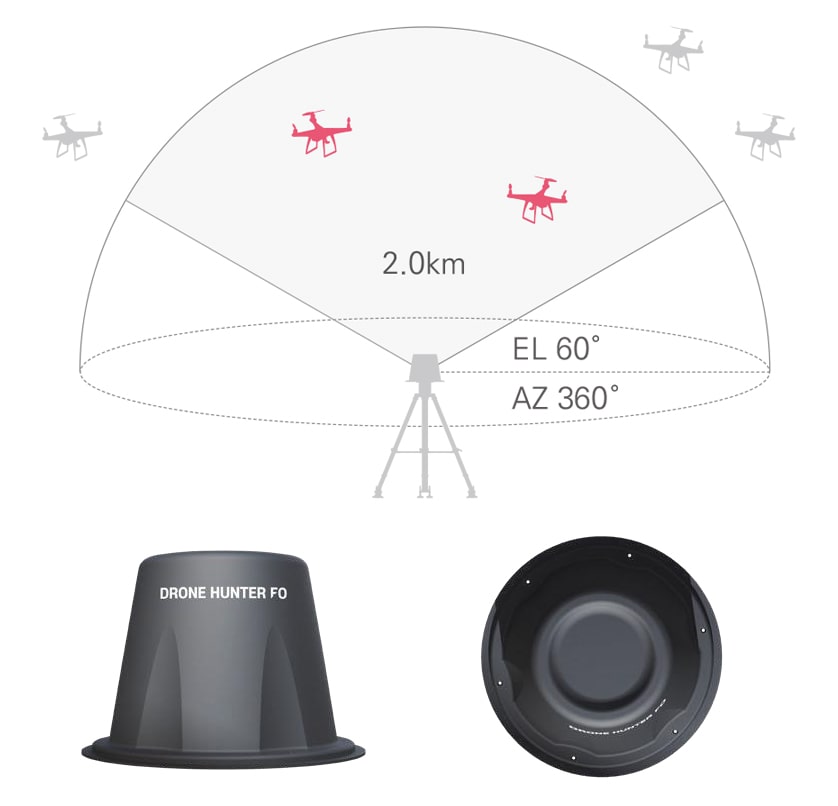

Drone Hunter FO is a powerful countermeasure against drone threats. Designed to cover ISM bands and GNSS L1 & L2, it effectively neutralizes a single drone or multiple drones approaching in all directions from a distance of 2km and operating within its antenna beam width. It is equipped with high-power amplifiers and signal generators to enable powerful multi-band continuous jamming.

This field-proven solution operates with a positioner that receives data from a seamlessly integrated detection/identification system by OURANOSTM C2 or third-party systems. In addition, it can be used as a stationary/mobile solution.

DRONE HUNTER FO

Features

Frequency Ranges

ISM 2.4 & 5.8GHz, GNSS L1 & L2,
*ISM 433 & 900MHz (Optional)

Jamming Range

2km

Lightweight

efficient antennas

Optimum signal

generators and amplifiers

Stationary

mobile operation

MIL-STD-810G

IP65

Specifications

DRONE HUNTER FO

Parameter

Value

Frequency Band

2.4GHz ISM : 2,400 ~ 2,485MHz
5.8GHz ISM : 5,725 ~ 5,875MHz
GNSS L1 : 1,550 ~ 1,610MHz
GNSS L2 : 1,215 ~ 1,300MHz

*Optional
433MHz ISM : 420 ~ 470MHz
900MHz ISM : 860 ~ 930MHz

Jamming Range

2km

Antenna Beam Width

Azimuth : 360°
Elevation : 60°

Jamming Signal Source

Linear FM with Noise Modulation

Cooling Method

Forced Air Cooling

Amplifier Operating Mode

Closed-Loop

Operating Temperature

-32°C ~ +50°C

Storage Temperature

-33°C ~ +65°C

Power Supply

28 VDC (A power supply unit will be supplied.)

Ingress Protection

IP65

Dimensions

540 x 400 x 300 mm

Weight

35.0kg

All the data and appearance of the product are subject to change by RF environments and according to customer requirements.

ANTENNA

Omnidirectional radiation pattern that allows for radiation power to be emitted in all directions
Enhancement of electrical performance through optimization of multi-band radiation characteristics

Application area

  • national critical infrastructure
  • multi-use facilities
  • VIP protection
national critical infrastructure

national critical infrastructure

Protect national critical infrastructure, including energy and key industrial infrastructure, also border areas requiring security and protection, such as military bases, prisons, etc

multi-use facilities

multi-use facilities

Protect multi-use facilities exposed to threats such as airport and stadiums to prevent human casualties

VIP protection

VIP protection

Protect vehicles and embassy facilities as a means of protecting VIPs
