DRONE HUNTER FP

DRONE HUNTER FP

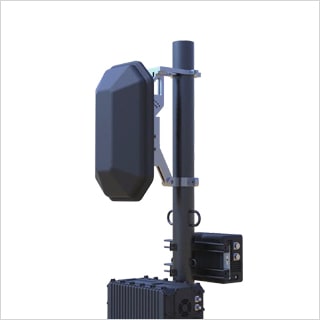

Drone Hunter FP6 is a powerful countermeasure against drone threats. Designed to cover ISM bands and GNSS L1 & L2, it effectively neutralizes a single drone or multiple drones approaching in a direction from a distance of 500m to 1km and operating within its antenna beam width.

Its antenna beam width can be expanded to 360° if a total of 4 antennas are installed. It is equipped with high-power amplifiers, signal generators and panel antennas to enable powerful multi-band continuous jamming. This field-proven solution operates with a positioner that receives data from a seamlessly integrated detection/identification system by OURANOSTM C2 or third-party systems. In addition, it can be used as a stationary/mobile solution.

ANTENNA

– Directional radiation in a certain direction to focus on certain target drones
– Optimized multi-band radiation to improve jamming effectiveness

DRONE HUNTER FP

Neutralizes multiple drones approaching from a certain direction

DRONE HUNTER FP
DRONE HUNTER FP

Features

Frequency Ranges

ISM 2.4 & 5.8GHz
GNSS L1 & L2,
*ISM 433 & 915MHz (Optional)

Antenna Beam Width

Azimuth : 90°
Elevation: 45°

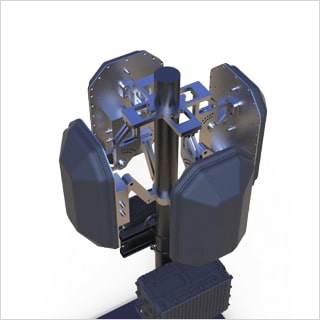

The azimuth can be

expanded to 360° by installing 4 antennas

Adjustable output power

per band Lightweight, efficient antennas Optimum signal generators and amplifiers Stationary/mobile operation

Specifications

Parameter

Value

Frequency Band

2.4GHz ISM : 2,400 ~ 2,500MHz
5.8GHz ISM : 5,725 ~ 5,850MHz
GNSS L1 : 1,550 ~ 1,610MHz
GNSS L2 : 1,208 ~ 1,254MHz

*Optional
433MHz ISM : 420 ~ 450MHz
915MHz ISM : 920 ~ 928MHz

Jamming Range

500m ~ 1km (5:1 Ratio)

Antenna Beam Width

Azimuth : 90°, Elevation : 45°(1Panel)

Jamming Signal Source

Linear FM with Noise Modulation

Cooling Method

Forced Air Cooling

Antenna Type

Multi-port directional panel antenna

Operating Temperature

-20°C ~ +60°C

Output Power

185W

Power Supply

28 VDC (A power supply unit will be supplied.)

Ingress Protection

IP65

Dimensions

Main Equipment : 237 x 480 x 310.5 mm
Antenna : 366 x 606 x 205.2 mm

Weight

Main Equipment : 30kg
Antenna : 10kg

Application area

  • national critical infrastructure
  • multi-use facilities
  • VIP protection
national critical infrastructure

national critical infrastructure

Protect national critical infrastructure, including energy and key industrial infrastructure, also border areas requiring security and protection, such as military bases, prisons, etc

multi-use facilities

multi-use facilities

Protect multi-use facilities exposed to threats such as airport and stadiums to prevent human casualties

VIP protection

VIP protection

Protect vehicles and embassy facilities as a means of protecting VIPs
